Rod end joint bearings are compact mechanical components designed to connect rods, shafts, linkages, and actuators while allowing controlled angular movement. Although their size is relatively small, they can have a major influence on the accuracy, service life, noise level, and reliability of an entire machine. A suitable rod end bearing must accommodate misalignment, transmit load efficiently, resist wear, maintain smooth movement, and remain stable in demanding industrial environments.
The SAZP rod end joint bearing is developed for applications that require a strong combination of mechanical strength, sliding performance, corrosion protection, and dimensional flexibility. Its construction combines a carbon steel rod end body, a galvanized surface, bronze sliding gaskets, and a hardened bearing-steel inner ring with spherical hard chrome plating. This material combination provides a practical alternative to ordinary low-cost rod ends that may suffer from rapid wear, weak corrosion resistance, inconsistent movement, or limited service options.
The product is available in a range of bore diameters from 4.83 mm to 25.4 mm, covering compact mechanisms as well as larger industrial linkages. Several inch-based thread sizes are included, and different thread precision requirements can be supplied. Left-hand thread versions are also available, while selected configurations may be manufactured with stainless steel bodies and inner rings. These options make the bearing suitable for automation equipment, machinery, control mechanisms, industrial linkages, and custom OEM assemblies.
A rod end bearing, sometimes called a rod end joint or spherical rod end, is used where a threaded rod or shaft must connect to another component while allowing angular articulation. Unlike a rigid threaded connector, a rod end bearing can compensate for small alignment differences between connected parts. This capability is especially important when the connected components move through an arc, when an actuator changes position, or when a machine frame experiences minor deflection during operation.
In a typical assembly, the threaded shank is attached to a rod, actuator, or adjustment mechanism. The bearing eye contains a spherical inner ring, which allows the connected pin or shaft to move through a controlled angular range. The result is a compact joint that combines fastening, alignment, and movement in one component.
Rod end bearings are commonly used in:
• Automation and robotic mechanisms
• Pneumatic and hydraulic cylinder linkages
• Machine-tool adjustment systems
• Conveyor and packaging equipment
• Agricultural and construction machinery
• Control cables and mechanical linkage systems
• Industrial valves and actuation assemblies
• Laboratory and testing equipment
• Custom OEM machinery
In these applications, the bearing may be exposed to oscillating movement rather than continuous rotation. It may also experience alternating loads, vibration, shock, dust, humidity, and frequent changes in direction. These conditions make material selection and surface treatment particularly important.
The rod end body is manufactured from carbon steel and protected with a galvanized surface. Carbon steel provides the structural strength required to support the threaded shank and bearing housing. It also offers a favorable balance between strength, machinability, availability, and cost.
The body must resist deformation when the rod end is tightened into an assembly or subjected to radial and alternating loads. A weak or poorly machined body can cause thread damage, distortion around the spherical raceway, or premature loosening. The carbon steel construction of the SAZP series is intended to provide a dependable load-bearing foundation for the internal sliding components.
Galvanization provides an additional protective layer against environmental exposure. In comparison with an untreated carbon steel body, a galvanized body offers improved resistance to surface oxidation during storage, assembly, and operation. This is especially useful in machinery installed in workshops, production areas, transport equipment, and moderately humid industrial environments.
The sliding surface uses bronze gaskets. Bronze is widely used in sliding applications because it can provide stable friction characteristics, good compatibility with hardened steel, and resistance to adhesive wear. The steel-and-bronze sliding pair is a practical solution for rod end bearings that operate through oscillation and angular movement.
The stated sliding friction pair is steel/bronze. This pairing is advantageous because the harder steel inner ring works against a comparatively softer and more conformable bronze sliding element. Under suitable loading and lubrication conditions, the bronze component can accommodate small surface irregularities and help distribute contact pressure.
Compared with an all-steel sliding interface, a steel/bronze arrangement can reduce the risk of severe adhesive contact and galling. Compared with a basic polymer-only joint, bronze can offer a more robust option in applications where mechanical stability, load capacity, or temperature resistance is important. The final performance depends on load, speed, oscillation angle, lubrication, contamination, and installation quality, but the material selection is well suited to general industrial linkage service.
The inner ring is made from bearing steel and hardened to improve resistance to deformation and wear. The inner ring forms the spherical contact surface and must maintain its geometry while the connected pin or shaft moves through the bearing.
Hardening improves the ability of the inner ring to withstand repeated contact stress. It helps preserve the spherical profile and reduces the risk of indentations caused by static or oscillating loads. A stable inner ring is essential for maintaining smooth movement and minimizing play during the working life of the joint.
The spherical surface of the inner ring is hard chrome plated. Hard chrome plating can improve surface hardness, wear resistance, and resistance to certain forms of corrosion. On a rod end bearing, the spherical surface is especially important because it is continuously involved in angular sliding and load transfer.
The hard chrome layer creates a durable working surface between the bearing steel inner ring and the bronze sliding gasket. It can also help maintain a smooth surface finish when the bearing is correctly lubricated and operated within its intended load and motion conditions.
This combination of a hardened substrate and hard chrome surface is a major advantage over untreated or lightly finished inner rings. It provides a more controlled interface for repeated motion and helps protect the inner ring from premature surface damage.
SAZP Rod End Joint Bearing
The SAZP series covers several inch-oriented rod end sizes. The listed product numbers include SAZP4S, SAZP8S, SAZP7S, SAZP9S, SAZP11S, SAZP12S, SAZP15S, SAZP19S, and SAZP25S. The product range includes bore sizes from 4.83 mm to 25.40 mm.
Depending on the model, thread sizes range from 10-32 and 1/4-28 through larger configurations such as 5/4-12. This makes the series suitable for both compact control linkages and larger mechanical connections.
| Model | Bore d (mm) | Width B (mm) | Ball Diameter dₖ (mm) | Thread | Dynamic Load (kN) | Static Load (kN) | Approx. Weight (kg) |
|---|---|---|---|---|---|---|---|
| SAZP4S | 4.83 | 7.92 | 11.10 | 10-32 | 3.4 | 3.8 | 0.013 |
| SAZP8S | 6.35 | 9.53 | 12.70 | 1/4-28 | 4.5 | 6.6 | 0.022 |
| SAZP7S | 7.94 | 11.10 | 15.88 | 5/16-24 | 6.9 | 8.4 | 0.037 |
| SAZP9S | 9.53 | 12.70 | 18.26 | 3/8-24 | 9.4 | 10.0 | 0.055 |
| SAZP11S | 11.11 | 14.27 | 20.62 | 7/16-20 | 11.0 | 13.0 | 0.078 |
| SAZP12S | 12.70 | 15.88 | 23.81 | 1/2-20 | 15.0 | 19.0 | 0.120 |
| SAZP15S | 15.88 | 19.05 | 28.58 | 5/8-18 | 20.0 | 21.0 | 0.180 |
| SAZP19S | 19.05 | 22.23 | 33.32 | 3/4-16 | 29.0 | 29.0 | 0.290 |
| SAZP25S | 25.40 | 34.93 | 47.63 | 5/4-12 | 60.0 | 101.0 | 1.100 |
The table presents representative values from the supplied product information. Engineers should confirm the complete dimensional drawing, fit, thread class, lubrication arrangement, and application load before approving a bearing for a specific machine.
The bore range begins with compact 4.83 mm and 6.35 mm options and extends to a 25.4 mm bore. Small models are suitable for lightweight mechanisms, miniature actuators, instrumentation assemblies, and compact automation equipment. Larger sizes are appropriate for higher-load linkages, industrial cylinders, and structural machine connections.
A broad size range allows designers to maintain a consistent product family across multiple machine platforms. This can simplify procurement, spare-parts management, maintenance training, and assembly procedures.
The listed dynamic load ratings extend from 3.4 kN for the smallest model to 60 kN for the largest listed model. Static load ratings range from 3.8 kN to 101 kN. These values demonstrate that the series is designed for applications ranging from compact control mechanisms to substantially loaded industrial joints.
Dynamic and static ratings should not be interpreted as universal operating limits. Actual bearing life depends on the type of motion, oscillation angle, load direction, lubrication, mounting alignment, speed, temperature, and contamination. A bearing exposed to a small oscillation angle may experience a different wear pattern from one used in continuous rotation. Similarly, shock loads and reversing loads require additional engineering consideration.
The listed approximate angular movement values range from approximately 9 to 14 degrees, depending on the model. This allows the rod end to compensate for angular misalignment while maintaining a compact connection.
The available angle should be considered during machine design. The rod end should not be forced against a surrounding structure, spacer, shoulder, or actuator body. If the required articulation exceeds the listed movement, the design may need a different bearing arrangement, additional clearance, or an alternative joint configuration.
Except for bore diameters below 6.35 mm, the listed products can be lubricated through an oil cup. This is a practical feature for industrial equipment because it allows maintenance personnel to replenish lubricant without removing the bearing from the assembly.
Relubrication can help control friction, reduce wear, and protect the steel/bronze sliding pair. The appropriate lubricant and maintenance interval depend on the operating environment and duty cycle. A slow-moving linkage operating in a clean environment may require a different schedule from a high-cycle actuator exposed to dust or moisture.
Lubrication should be applied in a controlled manner. Excessive lubricant can attract abrasive particles, while insufficient lubrication can increase friction and accelerate surface wear. Maintenance personnel should use a lubricant compatible with the bearing materials, temperature range, surrounding seals, and machine operating conditions.
The small-bore models below 6.35 mm do not share the same oil-cup arrangement. These compact versions should therefore be evaluated according to their intended lubrication method and maintenance access. Designers should consider serviceability during the initial equipment design rather than treating lubrication as an afterthought.
Routine inspections should include a check for excessive radial or axial play, abnormal noise, rough movement, visible corrosion, damaged threads, loose mounting hardware, and lubricant leakage or contamination.
If a rod end develops noticeable looseness, the cause should be investigated. Possible causes include normal wear, overloading, misalignment, insufficient lubrication, incorrect installation torque, vibration loosening, contamination, or damage to the mating pin. Replacing the bearing without correcting the underlying cause may result in repeated failure.
During inspection, technicians should also confirm that the bearing can articulate freely through its intended angle. Contact between the body and adjacent components can create unwanted loads and may significantly shorten service life.
Thread configuration is a major selection factor for rod end bearings. The SAZP series includes multiple UNF thread sizes, allowing integration with assemblies designed around inch-based fasteners and adjustment rods.
Different thread precision requirements are available. This is useful when the rod end is used in a precision adjustment mechanism, where thread fit and repeatability may affect the final position of an actuator or linkage. It also allows the bearing to be matched more closely to the requirements of an OEM assembly.
Left-hand thread versions are available for applications that require opposed adjustment or synchronized movement. In the product marking system, the bearing model and thread marking are followed by “L” and “LH” for left-hand threads.
The supplied example is SALZP12S 1/2 20UNF 2ALH. The exact marking should be confirmed when ordering because thread designation, fit class, body configuration, and handedness all affect interchangeability.
Left-hand and right-hand thread combinations are commonly used in adjustable tie rods. Rotating the rod can increase or decrease the overall assembly length without disconnecting either end. This can make alignment and adjustment faster, particularly in machine setups where access is limited.
The rod end body and inner ring can be manufactured from stainless steel for selected products. The bearing model is marked with “X,” such as SAZP…S/X.
Stainless steel construction can be useful in applications exposed to moisture, washdown, corrosive atmospheres, or hygiene-related requirements. However, stainless steel selection should be matched to the actual environment. Different stainless grades have different strength, corrosion resistance, hardness, and surface-treatment characteristics. The specific grade and performance should be confirmed for the required application.
One of the primary advantages of the SAZP design is the steel/bronze sliding friction pair. Basic rod end bearings may use less durable materials, untreated steel surfaces, or sliding interfaces that are not optimized for repeated oscillation. A properly engineered bronze sliding component can provide a more stable contact condition and better resistance to adhesive wear.
The bronze gasket also offers a degree of conformability. This can help the sliding interface accommodate small manufacturing variations and distribute contact more evenly. The result is a more dependable motion profile when the bearing is correctly aligned and lubricated.
The hardened bearing-steel inner ring with spherical hard chrome plating is another important differentiator. The surface is designed to resist wear while maintaining the geometry needed for angular movement.
Compared with an untreated inner ring, the plated surface can provide improved durability in repeated motion. It can also offer better protection against surface damage during storage and service. The combination of hardened steel and hard chrome is particularly valuable in mechanisms that experience frequent reversing movement.
The galvanized carbon steel body provides a useful level of corrosion protection without requiring the cost or weight of a fully stainless steel construction in every application. For many industrial environments, this is a balanced approach that supports service life while keeping the bearing economically practical.
Where more aggressive corrosion conditions exist, the stainless steel body and inner ring option provides an additional configuration route.
A product family extending from 4.83 mm to 25.4 mm bore diameter gives engineers more freedom to select a bearing based on actual load and space requirements. A broad range also reduces the need to mix products from several suppliers.
The inclusion of multiple UNF thread sizes, precision thread options, and left-hand versions further increases design flexibility. These options are useful for custom machinery, replacement parts, and OEM equipment where a standard off-the-shelf configuration may not provide the required fit.
The availability of an oil cup on most models supports preventive maintenance. Instead of treating the bearing as a permanently inaccessible component, equipment designers can incorporate a lubrication schedule and inspection procedure.
Serviceability is especially important in production machinery, where planned maintenance is generally less expensive than unexpected downtime. The ability to replenish lubricant and inspect the joint can help maintenance teams identify wear before it causes secondary damage.

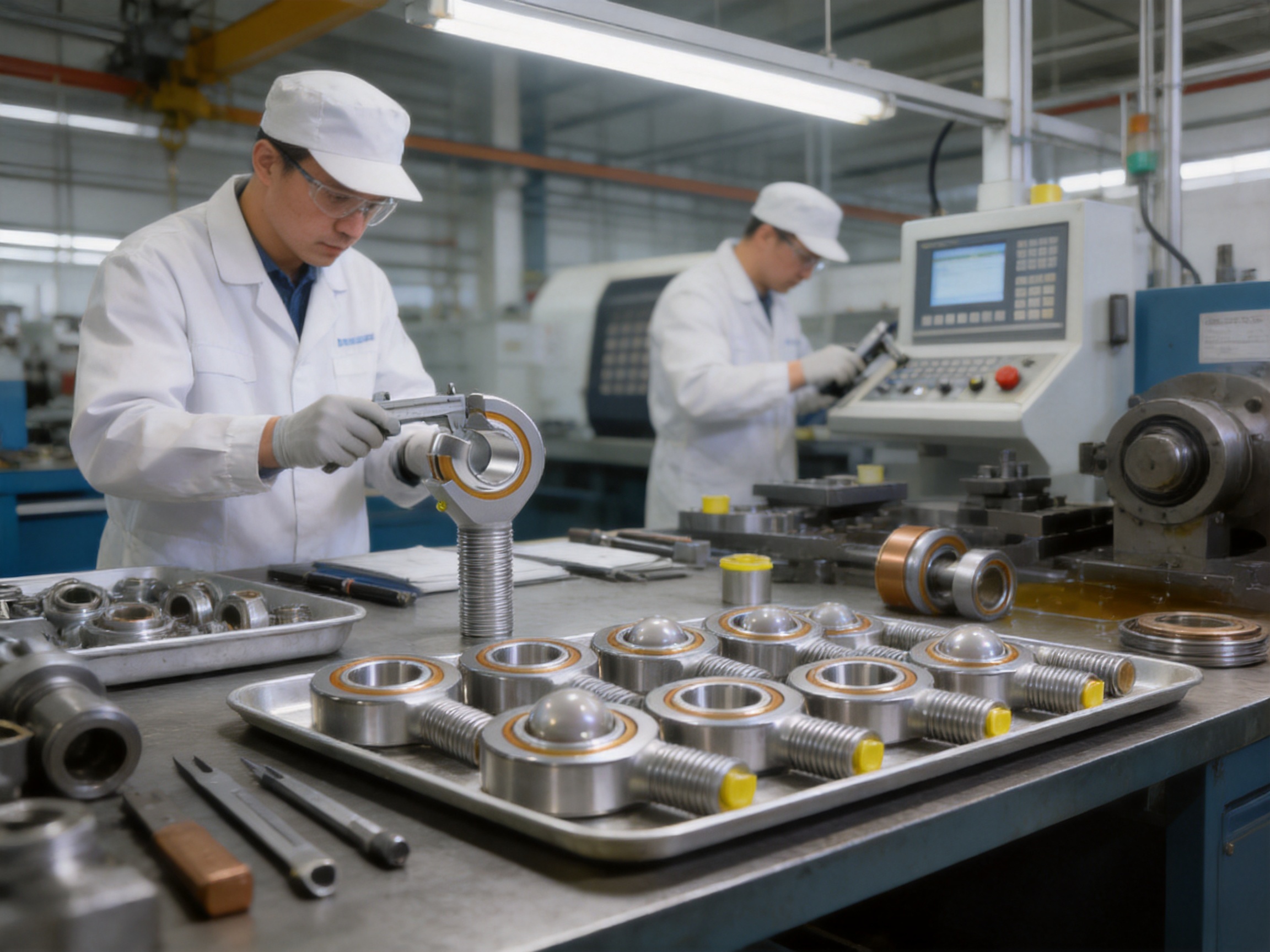

The manufacturer operates as an integrated bearing producer and international supplier, combining research and development, production, and distribution. Its reported manufacturing capabilities include forging, turning, heat treatment, grinding, assembly, and packaging.
This process coverage is important because rod end bearing quality depends on the relationship between several manufacturing stages. The body, inner ring, sliding components, threads, plating, and assembly must all work together. Control of only one operation is not enough to ensure consistent performance.
Forging can be used to prepare strong and efficient steel components with a suitable grain structure. Proper material preparation provides a reliable foundation for later machining and heat treatment. For a rod end body, this helps support the threaded shank and bearing housing under load.
Material traceability and process control at this stage can contribute to consistent mechanical properties. Important factors include material chemistry, forging temperature, reduction ratio, cooling conditions, and inspection procedures.
Turning creates the primary dimensions of the rod end body and inner ring. Threaded sections, shoulders, external surfaces, and internal features must be machined accurately so that the finished component can be installed correctly.
Thread accuracy is particularly important. A poorly formed thread can cause difficult installation, insufficient engagement, uneven loading, or damage to the mating component. Controlled turning and thread inspection help improve interchangeability across production batches.
Heat treatment is used to develop the required hardness and mechanical properties of bearing steel components. For the inner ring, hardness must be sufficient to resist deformation and wear while maintaining dimensional stability.
Heat-treatment control involves heating, holding, quenching, tempering, and inspection. Inadequate control can result in excessive brittleness, insufficient hardness, distortion, or residual stress. A disciplined heat-treatment process is therefore essential for a reliable spherical inner ring.
Grinding improves dimensional accuracy and surface finish on critical bearing surfaces. The spherical inner ring requires particular attention because its geometry directly affects angular movement, contact pressure, friction, and wear.
A smooth and accurate surface can help create more consistent contact with the bronze gasket. Grinding also prepares the surface for hard chrome plating by establishing the required geometry and finish before coating.
Surface treatment is used to improve the performance of both the inner ring and the rod end body. Hard chrome plating is applied to the spherical inner ring surface, while the carbon steel body receives galvanization.
Uniform coating thickness, adhesion, coverage, and post-treatment inspection are important quality factors. The working surface must retain its intended spherical geometry after plating, and the galvanized body must provide consistent protection without interfering with threads or assembly fits.
Assembly brings together the rod end body, bronze sliding gasket, inner ring, oil cup where applicable, and other associated elements. Correct assembly is necessary to establish the intended clearance, movement, and load distribution.
Final inspection may include dimensional checks, thread verification, surface inspection, movement testing, load-related evaluation, and packaging review. The purpose is to ensure that the finished bearing matches the product drawing and can be integrated into the customer’s equipment with predictable results.
The manufacturer’s broader engineering activity includes the development of high-precision cross roller bearings, dual-direction thrust angular contact ball bearings, and other specialized bearing products for CNC machines, robotics, and intelligent automation systems. This wider technical background is relevant to rod end bearing production because many of the same principles apply: precision geometry, controlled friction, material selection, heat treatment, and reliable quality management.
Research and development capability can be particularly valuable for customers with non-standard requirements. Applications may require unusual thread configurations, special materials, tighter tolerances, modified lubrication arrangements, corrosion-resistant construction, or customized packaging.
As an integrated manufacturer and trader with more than 15 years of OEM and ODM export experience, the company supports both standard products and custom bearing programs. Its reported production capacity is approximately 10,000 to 50,000 units per month, allowing it to serve both recurring industrial requirements and larger production orders.
OEM customers often require bearings to fit an existing machine design without modifying surrounding components. ODM customers may require a bearing developed around a new product concept. In both cases, technical communication is essential.
Important information for an OEM or ODM project includes bore size, thread type, thread direction, load, movement angle, operating temperature, lubrication method, environmental exposure, installation space, required service life, and annual demand.
A supplier with capabilities in design, manufacturing, inspection, and international distribution can coordinate these requirements more efficiently than a supplier that only resells standard components. The result can be shorter communication paths, better control of revisions, and more consistent production documentation.

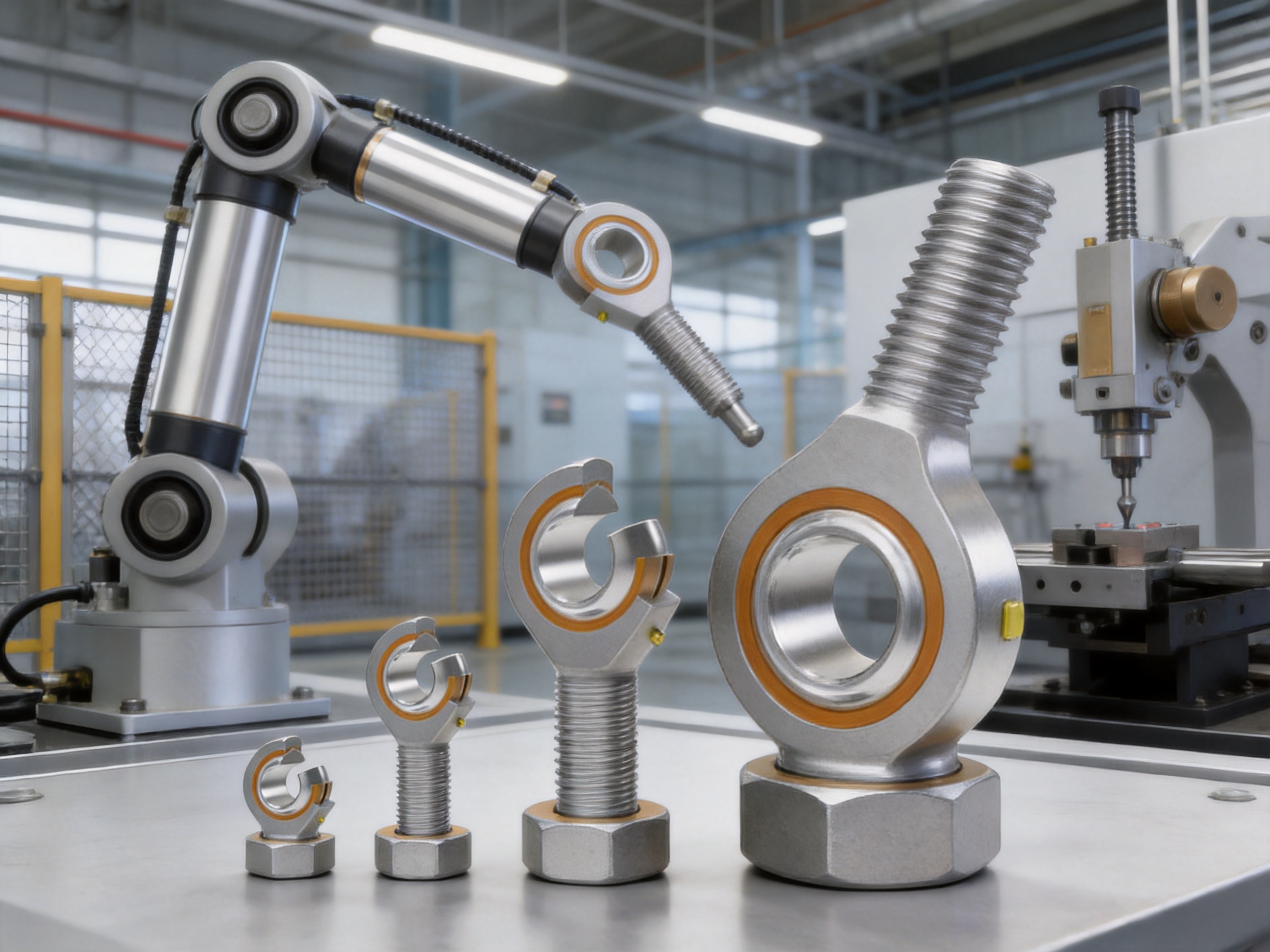

Automation systems frequently use compact linkages to transfer motion between actuators, guides, clamps, and tooling. Rod end bearings can absorb small angular differences while keeping the mechanism compact.
In a robotic or automated assembly, the bearing should be selected according to the actual motion profile rather than the maximum actuator force alone. Repeated short-stroke oscillation can generate a different wear pattern from continuous rotation. The number of cycles, acceleration, deceleration, and dwell periods should be considered during selection.
Rod end bearings are often used at the end of pneumatic or hydraulic cylinders. They permit the cylinder rod to transmit force while accommodating angular movement between the cylinder and the driven mechanism.
Correct alignment is essential. If the cylinder is forced to act as a structural guide, the rod end may experience side loading beyond its intended design. The mechanism should provide suitable guides or supports so that the rod end primarily performs its function as an articulated connection.
Machine tools and industrial mechanisms require stable movement and predictable positioning. A rod end bearing with a hardened spherical surface and serviceable lubrication can be suitable for adjustment systems, clamping devices, and linkage assemblies.
Where precision is critical, engineers should specify the appropriate thread precision and control the fit between the inner ring and mating pin. Excessive clearance may cause backlash, while insufficient clearance may restrict movement or increase friction.
Outdoor equipment can be exposed to water, dust, mud, vibration, and temperature changes. The galvanized body provides useful surface protection for many general environments, while stainless steel options may be considered for more corrosive conditions.
Contamination control remains important. Even a corrosion-resistant surface cannot compensate for abrasive particles entering the sliding interface. Protective covers, proper cleaning, and regular lubrication may be needed depending on the application.
Before installation, confirm the bearing model, bore diameter, thread direction, thread size, load rating, and available angular movement. Inspect the bearing for damage, contamination, thread deformation, or corrosion.
The mating pin should have the correct diameter, surface finish, hardness, and retention method. A pin that is too small can create excessive clearance and concentrated contact. A pin that is too large can restrict movement or damage the inner ring during assembly.
When tightening the threaded shank, use the recommended installation method and avoid applying assembly force through the spherical inner ring. Excessive tightening torque can distort the rod end body or damage the threads.
Ensure that the rod end is aligned with the direction of the applied load. Avoid side loading that forces the bearing beyond its intended articulation. If the assembly requires a larger angle, add suitable spacers or select a joint designed for the required movement.
After installation, move the linkage manually through its complete operating range. Confirm that there is no binding, interference, abnormal resistance, or contact between the bearing body and adjacent parts.
Selection should begin with the required bore diameter and thread type. The bore must match the mating pin or shaft, while the thread must match the rod, actuator, or adjustment hardware.
Next, calculate the loads acting on the bearing. Consider radial load, axial load, alternating load, shock load, preload, and any moment generated by an offset connection. Compare the calculated loads with the applicable dynamic and static ratings, applying an appropriate safety factor.
The operating environment should then be assessed. Humidity, dust, chemical exposure, washdown, outdoor installation, and temperature can influence the choice between galvanized carbon steel and stainless steel configurations.
Movement characteristics are equally important. Determine whether the bearing will rotate continuously, oscillate through a small angle, or articulate intermittently. Record the cycle frequency and expected service life. These factors influence lubrication and wear behavior.
Finally, consider maintenance access. If the bearing will be installed in a difficult-to-reach location, the oil-cup arrangement, lubrication interval, and replacement procedure should be reviewed before final approval.
The manufacturer serves customers in Europe, Asia, Africa, Russia, North America, and other markets. Its reported export experience includes customers in the United States, Italy, Germany, Poland, South Africa, Egypt, and India.
International customers benefit from consistent product documentation, technical communication, packaging control, and after-sales support. A multilingual service team can assist with product selection, installation guidance, maintenance questions, and replacement requirements.
For industrial buyers, supply reliability is not limited to product availability. It also includes stable specifications, repeatable quality, traceable revisions, suitable packaging, and timely technical responses. These factors are especially important when rod end bearings are used in machines that operate continuously or are installed in multiple production sites.
Modern bearing production must address both technical performance and environmental responsibility. The manufacturer reports the use of environmentally responsible processes, material recycling, and energy optimization initiatives.
Durable components can support sustainability by extending maintenance intervals and reducing the frequency of replacement. A bearing that maintains its performance for a longer period may reduce material consumption, packaging waste, transportation demand, and machine downtime.
Responsible manufacturing also includes efficient process planning, controlled use of cutting fluids and plating chemicals, proper waste handling, and recycling of suitable materials. These practices should be supported by documented procedures and continuous improvement rather than treated as isolated activities.
For OEM applications, the main benefits of the SAZP series include broad dimensional coverage, multiple thread options, left-hand thread availability, lubrication access on most sizes, and optional stainless steel construction.
For replacement applications, the clearly identified model range helps maintenance teams compare bore size, thread, load rating, and weight. Before replacing an existing bearing, users should verify all critical dimensions rather than relying only on nominal bore diameter.
A replacement bearing must fit the surrounding linkage, provide sufficient articulation, and match the operating environment. If the original failure resulted from misalignment, contamination, or overload, the replacement should be selected together with a corrective action.
It is used to connect rods, shafts, actuators, and mechanical linkages while allowing controlled angular movement. Typical applications include automation equipment, cylinders, machine tools, industrial linkages, and custom machinery.
The standard rod end body is made from carbon steel with a galvanized surface. The sliding surface uses bronze gaskets, while the inner ring is made from hardened bearing steel with spherical hard chrome plating.
The specified sliding friction pair is steel/bronze. The hardened and chrome-plated steel inner ring works against the bronze sliding component.
The listed bore sizes range from 4.83 mm to 25.40 mm. The product family includes several intermediate sizes for compact, medium, and higher-load mechanisms.
Yes. The listed models use UNF thread sizes ranging from 10-32 and 1/4-28 to larger sizes such as 5/4-12. The exact thread specification should be confirmed for each model.
Yes. Left-hand thread versions are available and are marked with the specified “L” and “LH” designations following the bearing model and thread marking.
Except for bore diameters below 6.35 mm, the listed products can be lubricated through an oil cup. The lubricant type and maintenance interval should be determined according to the operating conditions.
Yes. The rod end body and inner ring can be made from stainless steel for selected configurations. These products are identified by an “X” in the bearing model.
The supplied product information states an operating temperature range of 50°C to +150°C. Because the lower limit is presented in that form, customers should confirm the exact temperature specification with the manufacturer before using the bearing in sub-zero conditions.
The listed approximate angular movement ranges from about 9 to 14 degrees, depending on the model. The final installation must provide sufficient clearance so that the bearing is not forced beyond its intended angle.
Users should check bore diameter, thread size, thread direction, load, movement angle, operating temperature, lubrication, corrosion exposure, installation space, and expected service life. The dynamic and static load ratings should be compared with the calculated application loads.
Hard chrome plating improves the working surface’s hardness, wear resistance, and protective performance. Together with the hardened bearing-steel substrate, it creates a durable spherical surface for repeated sliding contact.
Rod end bearings are primarily intended for articulated, oscillating, or limited-angle movement. Continuous rotation should be evaluated carefully because lubrication, speed, friction, and heat generation may differ from those in normal rod end applications.
Different thread precision requirements are available, and stainless steel configurations can be supplied for selected models. OEM and ODM projects should provide detailed dimensional, load, material, environmental, and packaging requirements for technical review.
The reported manufacturing process includes forging, turning, heat treatment, grinding, assembly, and packaging. These operations support control of material properties, dimensions, surface finish, hardness, and final product consistency.
The SAZP rod end joint bearing is a versatile solution for mechanical connections that require both load transmission and angular movement. Its carbon steel body, galvanized surface, bronze sliding gaskets, hardened bearing-steel inner ring, and spherical hard chrome plating create a balanced design for industrial use.
Its advantages include a practical steel/bronze sliding pair, improved surface durability, corrosion protection, lubrication access on most models, a broad bore range, inch-based thread options, left-hand thread availability, and optional stainless steel construction. These features help it compete with basic rod end designs that offer fewer configuration choices or less advanced surface protection.
The product is supported by integrated manufacturing capabilities covering forging, turning, heat treatment, grinding, assembly, and packaging. Combined with OEM and ODM experience, research and development resources, international distribution, and technical support, these capabilities make the series suitable for both standard replacement requirements and customized industrial equipment.
Successful application depends on correct model selection, accurate alignment, suitable lubrication, controlled loads, and regular inspection. When these factors are properly managed, the SAZP rod end joint bearing can provide reliable motion control and long-term service in automation, machinery, actuation, and industrial linkage systems.
