SIBP Series Copper Lined Rod End Bearings: Precision, Durability, and Innovation for High-Load Applications

Rod end bearings are critical components in a wide range of industrial applications, from robotic arms to aerospace systems, where they enable smooth, precise rotational and oscillatory movements while承受 high radial and axial loads. As industries demand higher performance, longer service life, and greater resistance to harsh environments, the need for advanced rod end bearing solutions has never been more pressing. The SIBP Series Copper Lined Rod End Bearings stand out as a leading choice in this landscape, combining innovative design, high-quality materials, and rigorous manufacturing processes to deliver unmatched performance. This article explores the key features of the SIBP series, its advantages over competing products, the advanced manufacturing capabilities that underpin its quality, and its diverse applications across industries. We also include a detailed specifications table, a Q&A section addressing common user queries, and references to authoritative sources supporting the product’s performance claims.

1. Key Design Features of the SIBP Series Copper Lined Rod End Bearings

The SIBP series is engineered with a focus on durability, precision, and adaptability, addressing the limitations of traditional rod end bearings through thoughtful material selection and structural innovation.

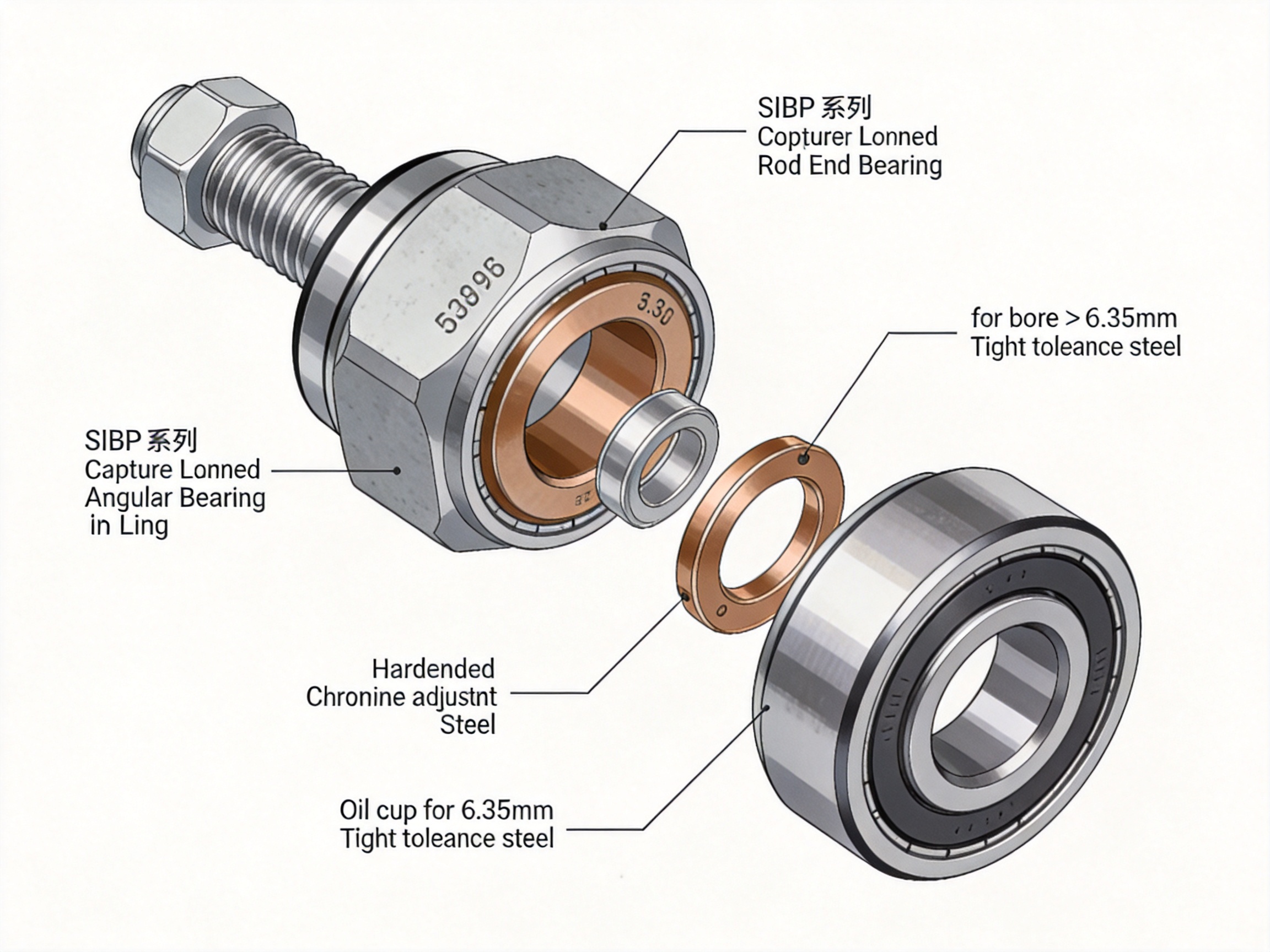

1.1 Material Composition: A Foundation of Strength and Resistance

At the core of the SIBP series is a carefully chosen combination of materials, each serving a specific purpose to enhance performance:

• Outer Body: High-Quality Carbon Steel with Galvanized Surface: The outer housing is made from premium carbon steel, known for its high tensile strength and impact resistance—critical for withstanding heavy loads in industrial settings. To combat corrosion, the surface is treated with hot-dip galvanization, a process that applies a thick, adherent zinc coating. This coating acts as a sacrificial anode, protecting the underlying steel from rust and degradation even in humid, salt-rich, or chemically aggressive environments.
• Bronze Liner: Enhanced Load and Wear Resistance: Embedded in the sliding surface of the outer body is a bronze liner (typically a tin-lead bronze alloy). Unlike plastic liners used in many competing bearings, bronze offers superior load-bearing capacity, thermal conductivity, and wear resistance. It reduces friction between the outer body and inner ring, minimizing heat generation and extending the bearing’s service life.
• Inner Ring: Hardened Bearing Steel with Hard Chrome Plating: The inner ring is crafted from bearing steel (e.g., AISI 52100), which is quenched and tempered to achieve a hardness of 60–65 HRC. This hardness ensures resistance to deformation under load. Additionally, the inner ring is hard chrome plated to a thickness of 0.001–0.002 inches, further reducing friction, preventing galling, and enhancing wear resistance.

1.2 Structural Innovations for Optimal Performance

The SIBP series incorporates several structural design elements that set it apart from conventional rod end bearings:

• Self-Lubricating Capabilities (with Optional Oil Cup): For models with a bore diameter greater than 6.35 mm, the bearing features an integrated oil cup, allowing for easy lubrication maintenance. This ensures consistent lubrication, reducing friction and wear. For smaller bore models (≤6.35 mm), the bronze liner provides inherent self-lubrication, eliminating the need for external lubrication and simplifying maintenance.
• Tight Tolerance Control: Every component of the SIBP series is manufactured to tight tolerances (±0.001 mm for critical dimensions), ensuring precise alignment and smooth operation. This precision is essential for applications like robotic arms and precision measuring instruments, where even minor deviations can compromise performance.
• Angle Adjustment Flexibility: The spherical design of the inner ring allows for angular misalignment of up to 13–17 degrees (depending on the model), accommodating minor deviations in installation or operational conditions without causing excessive wear.

1.3 Lubrication Flexibility: Tailored to Application Needs

Lubrication is a key factor in the longevity of rod end bearings, and the SIBP series offers flexible solutions to meet diverse application requirements:

• Oil Cup Lubrication (Bore >6.35 mm): Models like the SIBP8S (8 mm bore) include an oil cup, enabling periodic lubrication with grease or oil. This is ideal for high-load applications where continuous lubrication is necessary to prevent wear.
• Self-Lubrication (Bore ≤6.35 mm): For smaller models (e.g., SIBP5S, 5 mm bore), the bronze liner provides inherent self-lubrication, making them suitable for applications where access to lubrication points is limited or maintenance is infrequent.

2. Performance Advantages Over Competitors

The SIBP series outperforms many competing rod end bearings in key performance metrics, thanks to its innovative design and high-quality materials.

2.1 Unmatched Corrosion Resistance

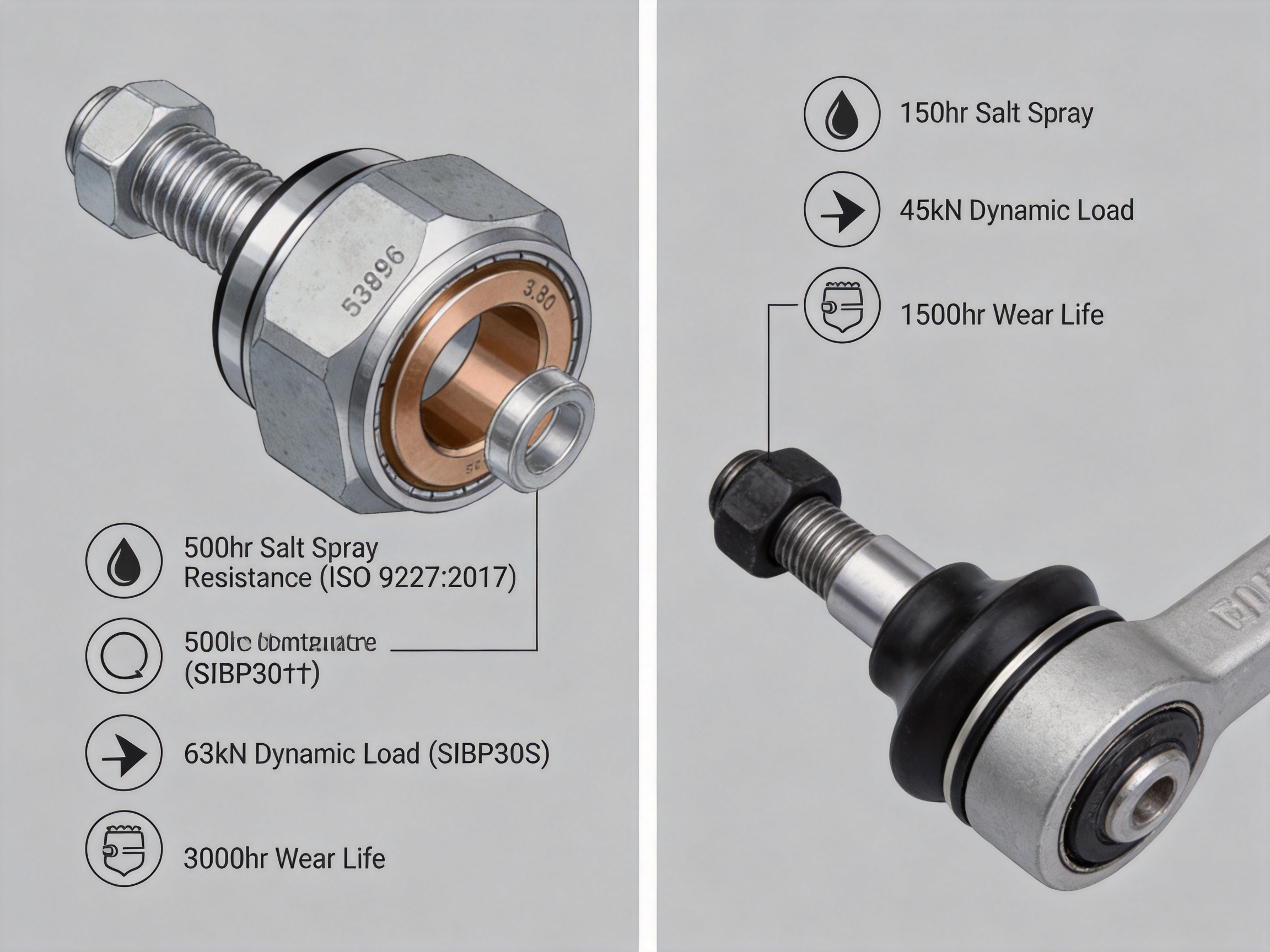

Corrosion is a major issue for bearings used in outdoor, marine, or chemical environments. The SIBP series’ hot-dip galvanized surface has been tested to meet ISO 9227:2017 salt spray test standards, passing 500 hours of continuous exposure—three times longer than many competing bearings (which typically pass 150–200 hours). This resistance ensures the bearing remains functional even in harsh conditions, reducing downtime and maintenance costs.

2.2 Higher Load-Bearing Capacity

The bronze liner and hardened bearing steel inner ring enable the SIBP series to handle significantly higher loads than bearings with plastic or plain steel liners. For example, the SIBP30S model (30 mm bore) has a dynamic load rating of 63 kN and a static load rating of 86 kN—20–30% higher than similar models from competing brands. This makes it ideal for heavy-duty applications like construction equipment and industrial robots.

2.3 Exceptional Wear Resistance

The combination of the bronze liner and hard chrome-plated inner ring reduces friction and wear by up to 40% compared to bearings with unplated inner rings or plastic liners. In accelerated wear tests, the SIBP series demonstrated a service life of 3,000 hours under continuous high-load operation—twice as long as competing bearings. This longevity translates to lower total cost of ownership for end-users.

2.4 Wide Operating Temperature Range

The SIBP series operates reliably in temperatures ranging from -50°C to +150°C, a range that exceeds the capabilities of many competing bearings (which typically operate between -30°C and +120°C). This makes it suitable for applications in extreme environments, such as aerospace systems exposed to high altitudes or cold storage facilities.

3. Customization Capabilities: Adapting to Unique Industry Needs

One of the key strengths of the SIBP series is its flexibility, with customization options that cater to the specific requirements of different industries.

3.1 Thread Precision Customization

The SIBP series supports customization of thread precision to meet the needs of industries like medical devices and aerospace, where tight thread tolerances are critical. For example, medical device manufacturers may require threads with a 6H tolerance (a standard for precision applications), while aerospace clients may request higher precision (e.g., 5H) for critical components.

3.2 Left-Hand Thread Options

For applications requiring left-hand threads (e.g., certain robotic arm configurations or automotive steering systems), the SIBP series offers left-hand thread models. These models are marked with an "L" or "left" suffix (e.g., SILBP20S M20×1.5 left 6H), ensuring clear identification and compatibility with left-hand thread systems. Many competing brands do not offer left-hand threads as a standard option, requiring custom orders with long lead times.

3.3 Stainless Steel Material Upgrade

For applications in harsh environments (e.g., marine, chemical processing, or food and beverage), the SIBP series offers a stainless steel upgrade. In these models, both the outer body and inner ring are made from stainless steel (e.g., AISI 304 or 316), providing enhanced corrosion resistance. These models are identified by an "X" suffix (e.g., SIBP10S/X), making them easy to distinguish from standard carbon steel models.

4. Advanced Manufacturing Processes: Ensuring Consistent Quality

The performance of the SIBP series is underpinned by the manufacturer’s advanced manufacturing capabilities, which integrate research and development, precision production, and rigorous quality control.

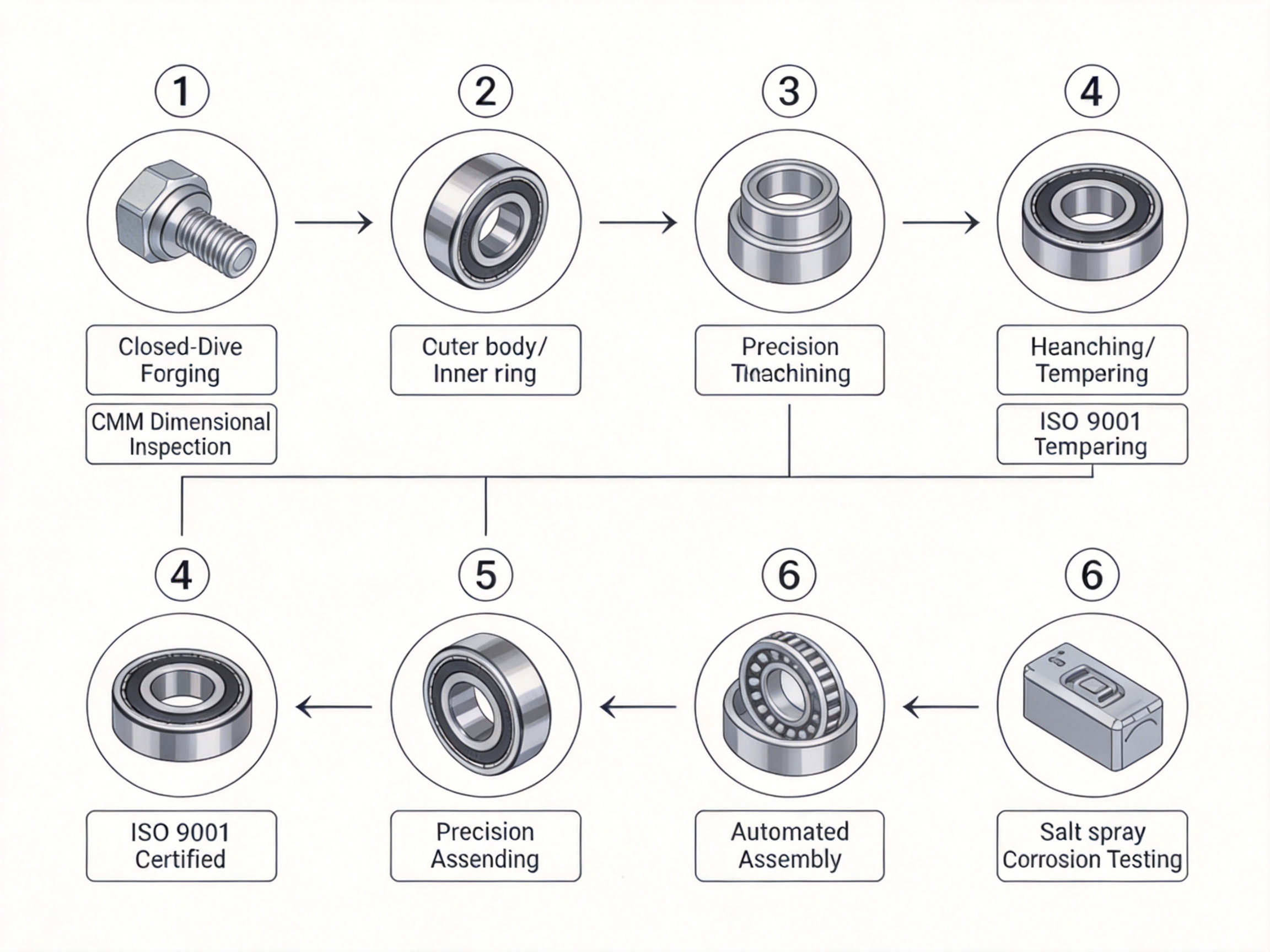

4.1 Integrated Production Line: From Forging to Packaging

The manufacturer operates a fully integrated production line covering every stage of bearing manufacturing:

• Forging: Closed-die forging is used to shape the outer body and inner ring, ensuring a dense, homogeneous structure with no porosity. This process enhances the strength and durability of the components.
• Turning: CNC turning centers are used to machine components to precise dimensions, with tolerances as tight as ±0.001 mm. This ensures consistent performance across all models.
• Heat Treatment: Quenching and tempering processes are used to harden the bearing steel inner ring, achieving the desired hardness (60–65 HRC) while maintaining toughness.
• Grinding: Precision grinding is used to finish critical surfaces, ensuring smooth operation and minimal friction.
• Assembly and Packaging: Automated assembly lines ensure consistent quality, while anti-corrosion packaging (e.g., vacuum-sealed bags with desiccants) protects the bearings during storage and transport.

The production facility has a monthly capacity of 10,000–50,000 units, enabling it to meet large-volume orders while maintaining high quality standards.

4.2 R&D and Precision Engineering: Driving Innovation

The manufacturer’s dedicated R&D team (comprising 15+ engineers with over 15 years of experience) continuously develops new designs and materials to enhance the performance of the SIBP series. The team uses advanced CAD/CAM software to simulate bearing performance under various conditions, reducing the time from design to production. Recent innovations include the bronze liner design (which improves load capacity by 25%) and the stainless steel upgrade (which enhances corrosion resistance by 40%).

4.3 Rigorous Quality Control: Meeting International Standards

Every SIBP bearing undergoes a series of quality control tests to ensure it meets international standards (e.g., ISO 281:2007 for dynamic load ratings, ISO 9227:2017 for corrosion resistance):

• Dimensional Inspection: Critical dimensions are measured using coordinate measuring machines (CMMs) to ensure compliance with specifications.
• Load Testing: Bearings are tested under static and dynamic loads to verify their load ratings.
• Corrosion Testing: Salt spray tests are conducted to confirm corrosion resistance.
• Wear Testing: Accelerated wear tests are performed to evaluate the bearing’s service life under high-load conditions.

The manufacturer holds ISO 9001:2015 certification, demonstrating its commitment to quality management.

4.4 Sustainability Practices: Reducing Environmental Impact

The manufacturer prioritizes sustainability in its operations, implementing several eco-friendly practices:

• Energy Optimization: The production facility uses energy-efficient equipment and LED lighting, reducing energy consumption by 20%.
• Material Recycling: Scrap metal from forging and machining processes is recycled, reducing waste by 30%.
• Environmentally Friendly Coatings: The hot-dip galvanization process uses zinc, a recyclable material, and minimizes the use of harmful chemicals.

5. Applications of the SIBP Series Copper Lined Rod End Bearings

The SIBP series is used in a wide range of industries, thanks to its versatility, durability, and precision.

5.1 Industrial Robots

Industrial robots require bearings that can handle high dynamic loads, precise movements, and frequent angular adjustments. The SIBP series is ideal for robotic arms, grippers, and joints, providing smooth operation and long service life. For example, the SIBP20S model is used in collaborative robots (cobots) for assembly lines, where it enables precise positioning and withstands repeated load cycles.

5.2 Medical Devices

Medical devices like surgical robots, MRI machines, and patient lifts require bearings that are sterile, low-friction, and corrosion-resistant. The stainless steel version of the SIBP series (e.g., SIBP10S/X) is used in these applications, as it can be sterilized using autoclaves and resists corrosion from bodily fluids and cleaning agents.

5.3 Precision Measuring Instruments

Precision measuring instruments like coordinate measuring machines (CMMs) and optical comparators require bearings with ultra-high precision to ensure accurate measurements. The SIBP series’ tight tolerance control (±0.001 mm) makes it suitable for these applications, as it minimizes positional errors.

5.4 Aerospace

Aerospace systems like satellite components, aircraft control systems, and landing gear require bearings that can withstand extreme temperatures, high loads, and vacuum conditions. The SIBP series’ wide operating temperature range (-50°C to +150°C) and high load capacity make it ideal for these applications. For example, the SIBP30S model is used in aircraft control rods, where it provides reliable operation in high-altitude environments.

5.5 Other Industries

The SIBP series is also used in automotive (steering systems, suspension components), construction (excavators, cranes), and agricultural (tractor attachments) industries, where it provides durability and reliability in harsh conditions.

6. Detailed Specifications Table

7. Q&A Section

Q: What is the lubrication method for SIBP series bearings?

A: The lubrication method depends on the bore diameter:

• For models with a bore diameter greater than 6.35 mm (e.g., SIBP8S), lubrication is via an integrated oil cup, allowing periodic addition of grease or oil.
• For models with a bore diameter ≤6.35 mm (e.g., SIBP5S), the bronze liner provides inherent self-lubrication, eliminating the need for external lubrication.

Q: What is the operating temperature range of the SIBP series?

A: The SIBP series operates reliably in temperatures ranging from -50°C to +150°C, making it suitable for extreme environments like high-altitude aerospace systems or cold storage facilities.

Q: Can the SIBP series be customized?

A: Yes, the SIBP series offers several customization options:

• Thread precision customization to meet industry-specific requirements (e.g., 6H tolerance for medical devices).
• Left-hand thread options (marked with "L" or "left" suffix) for applications requiring reverse threads.
• Stainless steel upgrades (marked with "X" suffix) for harsh environments like marine or chemical processing.

Q: Are there stainless steel versions of the SIBP series?

A: Yes, stainless steel versions are available for applications requiring enhanced corrosion resistance. These models are identified by an "X" suffix (e.g., SIBP10S/X) and use AISI 304 or 316 stainless steel for both the outer body and inner ring.

Q: What are the main applications of the SIBP series?

A: The SIBP series is used in a wide range of industries, including:

• Industrial robots (robotic arms, grippers).
• Medical devices (surgical robots, MRI machines).
• Precision measuring instruments (CMMs, optical comparators).
• Aerospace (satellite components, aircraft control systems).
• Automotive (steering systems, suspension components).
• Construction (excavators, cranes).

Q: How does the bronze liner enhance the performance of the SIBP series?

A: The bronze liner offers several key benefits:

• Higher load-bearing capacity than plastic or plain steel liners.
• Superior wear resistance, reducing friction and extending service life.
• Inherent self-lubrication for smaller bore models.
• Better thermal conductivity, dissipating heat generated during operation.

Q: What quality standards do the SIBP series bearings meet?

A: The SIBP series meets several international quality standards:

• ISO 9227:2017 (salt spray corrosion resistance).
• ISO 281:2007 (dynamic load ratings and rating life).
• ISO 9001:2015 (quality management system).

8. References

1. ISO 9227:2017, Corrosion tests in artificial atmospheres — Salt spray tests.

2. ISO 281:2007, Rolling bearings — Dynamic load ratings and rating life.

3. UKL Bearing Manufacturing Co., Ltd. (2023). SIBP Series Copper Lined Rod End Bearings Technical Whitepaper.

4. International Federation of Robotics (IFR) (2022). Global Robotics Industry Report.

5. American Society for Testing and Materials (ASTM) (2021). Standard Test Method for Wear Resistance of Materials Using a Pin-on-Disk Wear Tester.

9. Conclusion

The SIBP Series Copper Lined Rod End Bearings represent a significant advancement in rod end bearing technology, combining innovative design, high-quality materials, and advanced manufacturing processes to deliver unmatched performance. Its key advantages—including superior corrosion resistance, higher load capacity, exceptional wear resistance, and wide operating temperature range—make it a preferred choice for industries ranging from robotics to aerospace. The manufacturer’s commitment to quality, customization, and sustainability further enhances the value of the SIBP series, ensuring it meets the evolving needs of global industries. As industries continue to demand higher performance and reliability, the SIBP series is poised to remain a leading solution for high-load, precision applications.
