In modern precision engineering, the quality of rotary motion often determines the quality of the entire machine. A rotary table bearing used in a vertical grinder, gear hobbing machine, indexing head, robot joint, inspection device, or direct-drive motor platform must deliver more than rotation. It must provide repeatable positioning, resistance to combined loads, stability under preload, low friction, and dependable performance across long service cycles. The YRTS high-speed precision bearing is designed for exactly these conditions, combining high rigidity, high speed capability, high load capacity, and premium running accuracy in a compact rotary table bearing structure.
This article introduces the YRTS high-speed precision bearing as a specialized solution for high-performance rotary positioning systems. It explains its structure, working advantages, application value, selection considerations, operating requirements, and maintenance principles. It also highlights the manufacturing capabilities behind the product, including advanced production processes, quality control, precision grinding, heat treatment, assembly discipline, and global engineering support. Compared with ordinary rotary table bearings or lower-grade alternatives, this bearing series offers a balanced combination of precision, rigidity, speed, and integration convenience that is especially valuable for direct-drive applications.

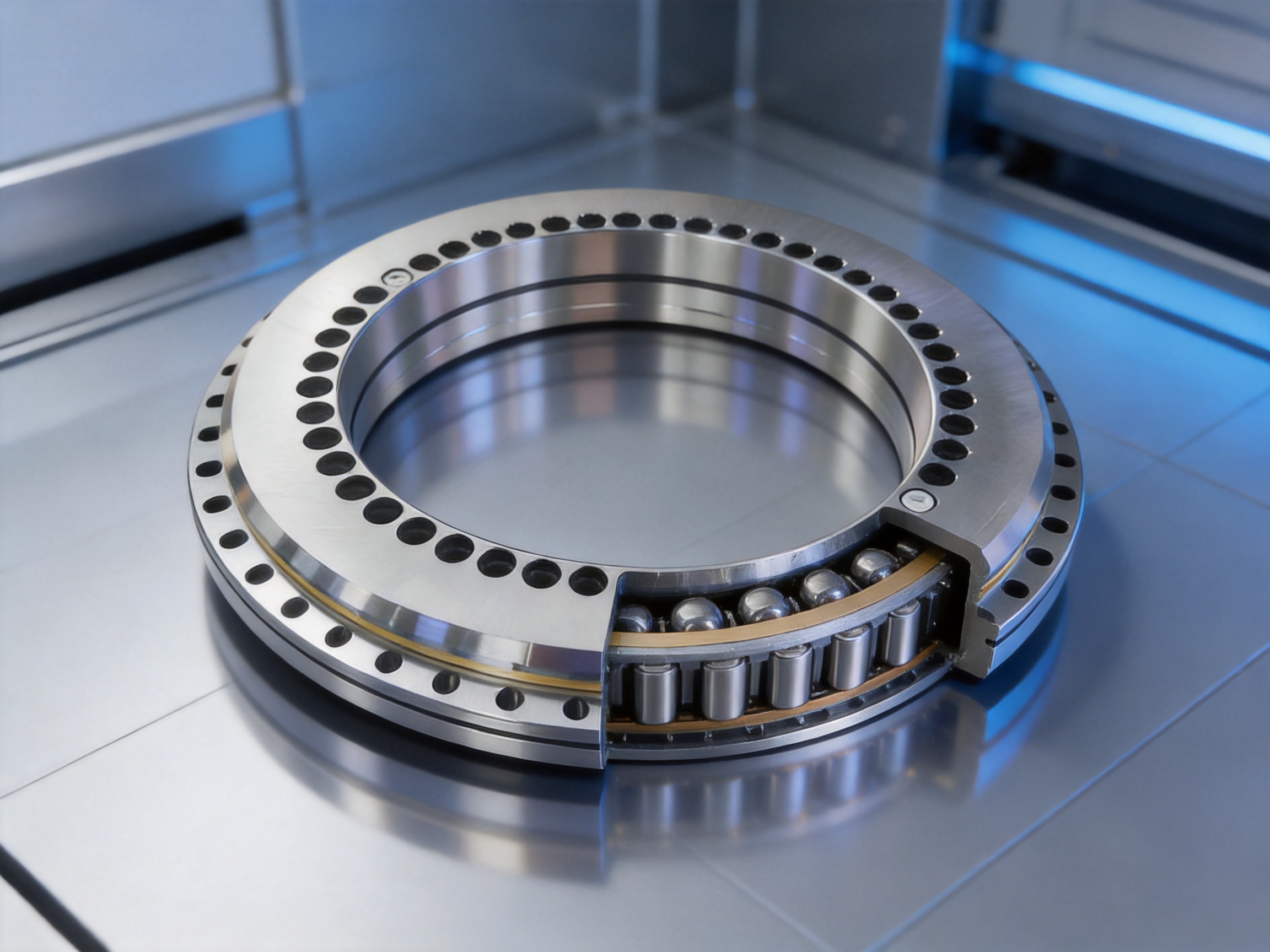

YRTS High Speed Precision Bearing
The YRTS high-speed precision bearing belongs to the category of high-precision rotary table bearings and is closely associated with cross roller bearing technology and axial-radial bearing design principles. It is engineered for applications requiring simultaneous support of axial loads, radial loads, and overturning moments. Unlike conventional bearings that may need multiple bearing sets to achieve similar support, this integrated bearing design helps simplify the surrounding structure, reduce accumulated assembly error, and improve the compactness of the machine.
The YRTS high-speed series is developed as a higher-speed alternative to standard YRT rotary table bearings. Although the external dimensions remain the same as the YRT standard series, the internal structure is different. This is an important benefit for machine builders and maintenance teams because it enables easier interchangeability in many designs while improving speed capability and friction behavior. The bearing is particularly suitable for direct-drive motor systems where rotary motion must be smooth, fast, and accurate without the influence of traditional mechanical transmission elements such as gears, belts, or worm drives.
The most distinctive features of the product include high precision, high rigidity, high load capacity, and high speed performance. Precision can reach P4 and P2 grades, making the bearing suitable for machines where micron-level accuracy and stable repeatability are expected. All bearings in the series are preloaded, which improves rigidity and eliminates internal clearance. The bearing can withstand axial, radial, and overturning loads, providing a strong foundation for precision rotary tables. In addition, the YRTS design is optimized for high-speed applications while maintaining low and uniform friction torque across the speed range.
Industrial equipment is moving toward higher productivity, tighter tolerances, and smarter automation. As machine tools and robotic systems become faster and more digitally controlled, the bearing at the center of each rotary axis becomes more critical. A conventional bearing may rotate, but it may not deliver the stiffness, axial-radial load capacity, or friction stability needed for high-precision direct-drive operation. When the bearing is not sufficiently accurate or rigid, the machine may experience vibration, positioning error, surface finish problems, unstable torque, increased heat, and reduced tool life.

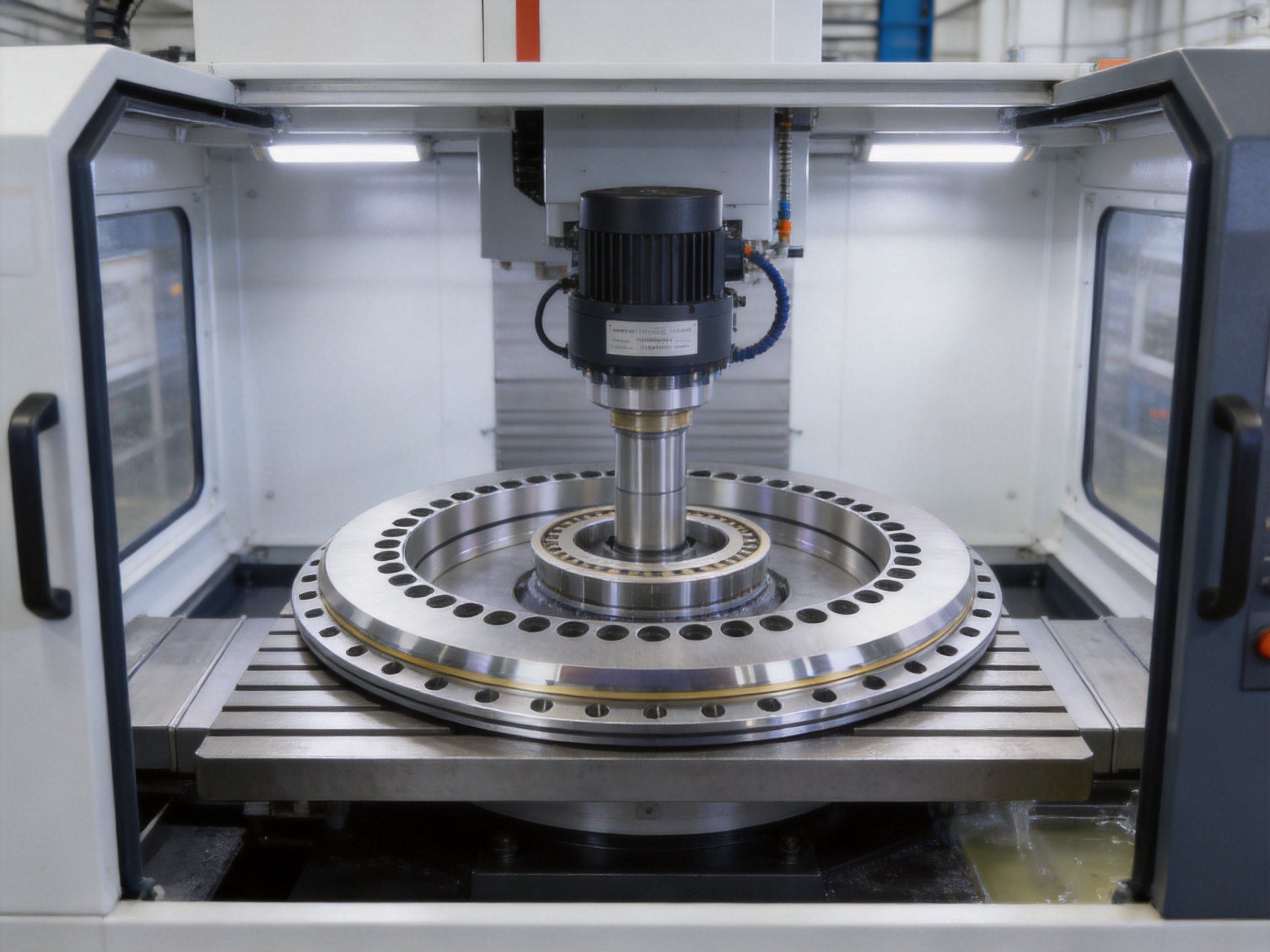

In a direct-drive rotary table, the motor is usually connected directly to the rotating axis. This removes backlash and improves response, but it also means the bearing must carry the full responsibility for geometric accuracy and mechanical stability. The bearing must resist tilt under load, maintain low friction, and allow smooth rotation at higher speeds. A bearing with uneven torque or insufficient preload stability can reduce servo control accuracy and make the whole system less predictable. The YRTS high-speed precision bearing addresses these challenges by combining preload, accuracy, and high-speed design into one integrated unit.
For gear machining, vertical grinding, milling, inspection, and precision indexing, rotary axis error directly affects the finished part. If the bearing allows angular deflection, radial runout, or axial movement, the workpiece cannot maintain the required position relative to the tool or sensor. A high-quality YRTS bearing helps stabilize the workpiece shaft and provides the rotational accuracy required for demanding manufacturing tasks. This is why the bearing is widely used in precision rotary table vertical grinders, indexing heads, gear hobbing machines, gear milling machine workpiece shafts, and other precision devices.
Precision is one of the primary advantages of the YRTS high-speed precision bearing. The series can reach P4 and P2 accuracy grades, which are suitable for demanding rotary table applications. Higher bearing precision contributes to reduced runout, improved rotation stability, and better positioning repeatability. For machine tools, this means improved machining consistency. For robotics and automation, it means more predictable motion and better path accuracy. For inspection equipment, it helps reduce measurement uncertainty.
Precision does not depend only on final inspection. It is achieved through the entire manufacturing chain: material selection, heat treatment, rough and finish machining, grinding, superfinishing, cleaning, assembly, preload control, and measurement. Even small errors in raceway geometry can influence torque and accuracy. Therefore, the manufacturing process behind this bearing emphasizes controlled production conditions and strict inspection at multiple stages.
All bearings in this series are preloaded. Preload is essential for high-rigidity rotary table bearings because it removes internal clearance and ensures stable contact between rolling elements and raceways. In a precision rotary table, clearance can cause movement, vibration, or positional uncertainty under changing loads. Preload helps the bearing resist deflection and improves the dynamic response of the rotating axis.
The value of preload is especially important in direct-drive systems. Because a direct-drive motor can accelerate and decelerate rapidly, the bearing must maintain stable stiffness during changing torque conditions. A well-controlled preload helps achieve smooth motion, accurate servo response, and better resistance to overturning moment. However, preload must be carefully designed and manufactured. Too little preload reduces rigidity, while excessive preload increases friction and heat. The YRTS high-speed precision bearing is designed to provide the correct balance between rigidity and high-speed performance.
The bearing can withstand axial loads, radial loads, and overturning loads. This combined load capability is one of the main reasons rotary table bearings are preferred in precision machine structures. In real operation, loads are rarely simple. A workpiece may exert axial weight, cutting forces may create radial loads, and offset forces may generate overturning moments. The bearing must handle all of these without losing accuracy.
Using one integrated bearing to support combined loads can reduce the need for multiple separate bearings. This simplifies the machine design and reduces the risk of misalignment between bearing sets. It also saves space and supports compact machine architecture. In precision equipment, reducing structural complexity often improves accuracy because there are fewer components contributing to accumulated tolerance error.
The YRTS high-speed series is designed for higher speeds than the standard YRT series. It also maintains low and uniform friction torque across the entire speed range. This feature is especially beneficial in direct-drive motor applications, where servo control quality depends heavily on predictable torque behavior. If bearing friction changes irregularly with speed or temperature, the control system must compensate, and motion smoothness may decline.
Low friction also contributes to reduced heat generation. Excessive bearing heat can cause thermal expansion, lubricant degradation, preload variation, and reduced accuracy. Uniform friction torque helps maintain stable operating temperature and supports long-term performance. This is one of the competitive advantages of the YRTS high-speed precision bearing compared with lower-quality alternatives that may rotate at high speed but produce unstable torque, vibration, or heat.
One important advantage of the YRTS high-speed series is that its external dimensions are the same as the YRT standard series while the internal structure is optimized for higher-speed operation. This offers practical value for customers who want to upgrade existing rotary table designs without redesigning the entire surrounding structure. In many cases, machine builders can improve speed capability while maintaining established mounting interfaces.
Compared with competitors that require different housing dimensions or extensive redesign for higher speed, this dimensional compatibility can reduce engineering time and cost. It can also simplify spare parts planning for equipment manufacturers and maintenance departments. When upgrading a precision rotary axis, the ability to use a familiar dimensional envelope is a major advantage.
Direct-drive technology has become increasingly popular because it eliminates backlash, improves acceleration response, and reduces mechanical transmission wear. However, direct-drive motors place higher demands on bearings. The bearing must provide high rigidity, low torque fluctuation, and stable precision at speed. The YRTS high-speed precision bearing is specifically suitable for this type of system.
Compared with ordinary rotary table bearings that may perform well at lower speeds but generate greater friction at higher speeds, the YRTS series supports smoother high-speed rotation. This makes it a stronger choice for rotary tables, indexing axes, and automated positioning systems that rely on direct-drive motors for dynamic performance.
Some competing solutions require separate bearing arrangements to support different load directions. For example, one bearing may support radial load while another supports axial load. Such arrangements can work, but they require careful alignment and can increase assembly complexity. The YRTS high-speed precision bearing provides integrated load support, reducing the number of components and helping maintain system rigidity.
This integrated approach also benefits machine builders by shortening assembly time and improving repeatability between units. A compact bearing package can support a more compact rotary table design, leaving more space for motors, encoders, sealing systems, and lubrication features.
Not every bearing marketed as a precision bearing can meet the needs of high-end machine tools and automation systems. The availability of P4 and P2 precision grades gives the YRTS series a clear advantage in applications requiring high rotational accuracy. For gear machining and grinding, small errors can become visible in the final part. For measuring devices, bearing runout can reduce measurement confidence. For robotics, repeatable rotation helps improve positioning reliability.
Compared with lower-grade bearings, high-precision rotary table bearings offer more stable geometry and more predictable motion. This can reduce rework, improve finished product quality, and increase confidence in automated production.
Competitor products that are not properly preloaded may show internal clearance or insufficient stiffness under cutting force. The YRTS high-speed precision bearing is supplied with preload, allowing it to deliver high rigidity from installation. This is essential for precision devices where rigidity and accuracy must be available immediately after correct mounting.
Preload also supports better vibration resistance. In high-speed rotation or intermittent indexing, vibration can affect surface finish, dimensional accuracy, and machine life. A preloaded bearing structure helps stabilize the rotating axis and supports smoother operation.
Vertical grinders require stable workpiece rotation and high axial-radial accuracy. The grinding process is sensitive to vibration and runout. A bearing with high rigidity and low friction helps maintain a stable grinding path and improves surface finish. The YRTS high-speed precision bearing supports these requirements by carrying combined loads and providing smooth rotation under preload.
Indexing heads require repeatable angular positioning. Inaccurate rotation or tilt can lead to machining errors. Because the YRTS high-speed precision bearing offers high precision and strong moment load resistance, it is suitable for indexing systems that must maintain stable positioning after repeated movement cycles.
Gear hobbing places strict demands on synchronization between tool and workpiece. Bearing accuracy affects gear tooth geometry, pitch accuracy, and surface consistency. A high-rigidity rotary bearing helps the workpiece shaft resist cutting loads and maintain proper alignment throughout the machining process.
In gear milling, the workpiece shaft must carry cutting forces while preserving rotational accuracy. The ability of the YRTS bearing to support axial, radial, and overturning loads makes it suitable for these conditions. Its speed capability also supports efficient machining cycles.
Although the product information emphasizes machine tool applications, the same design characteristics are highly relevant to robotics and automation. Robot joints, rotary indexing modules, and intelligent manufacturing systems need compact bearings with high stiffness and predictable torque. In systems where motion control precision is important, low and uniform friction torque can improve response and reduce control compensation.
Precision measuring devices often require rotational accuracy greater than that required in ordinary production equipment. Bearing error can become measurement error. A high-precision preloaded bearing helps reduce uncertainty and provides a stable mechanical reference for inspection platforms.
The YRTS high-speed precision bearing series includes several sizes suitable for different rotary table designs. The following table summarizes selected data based on the provided product information. Values are intended for engineering reference and should be confirmed during final selection according to the complete technical drawing, application load, lubrication method, mounting structure, and operating speed.
| Model | Inner Diameter d mm | Outer Diameter D mm | Height H mm | Axial Dynamic Load Ca kN | Axial Static Load Coa kN | Radial Dynamic Load Cr kN | Radial Static Load Cor kN | Grease Limited Speed r/min | Approx. Weight kg |
| YRTS200 | 200 | 300 | 45 | 105 | 635 | 78 | 202 | 950 | 9.7 |
| YRTS260 | 260 | 385 | 55 | 131 | 840 | 85 | 275 | 800 | 18.3 |
| YRTS325 | 325 | 450 | 60 | 191 | 1260 | 109 | 300 | 680 | 25 |
| YRTS395 | 395 | 525 | 65 | 214 | 1540 | 121 | 390 | 600 | 33 |
| YRTS460 | 460 | 600 | 70 | 221 | 1690 | 168 | 570 | 500 | 45 |
The table shows that as bearing size increases, load capacity generally increases while limited speed decreases. This is a typical engineering relationship because larger bearings have greater pitch diameters and higher rolling element speeds at the same rotational speed. Selection should therefore balance required load capacity, speed, stiffness, and available installation space. A smaller bearing may offer higher speed, while a larger bearing may provide greater moment load resistance and rigidity.

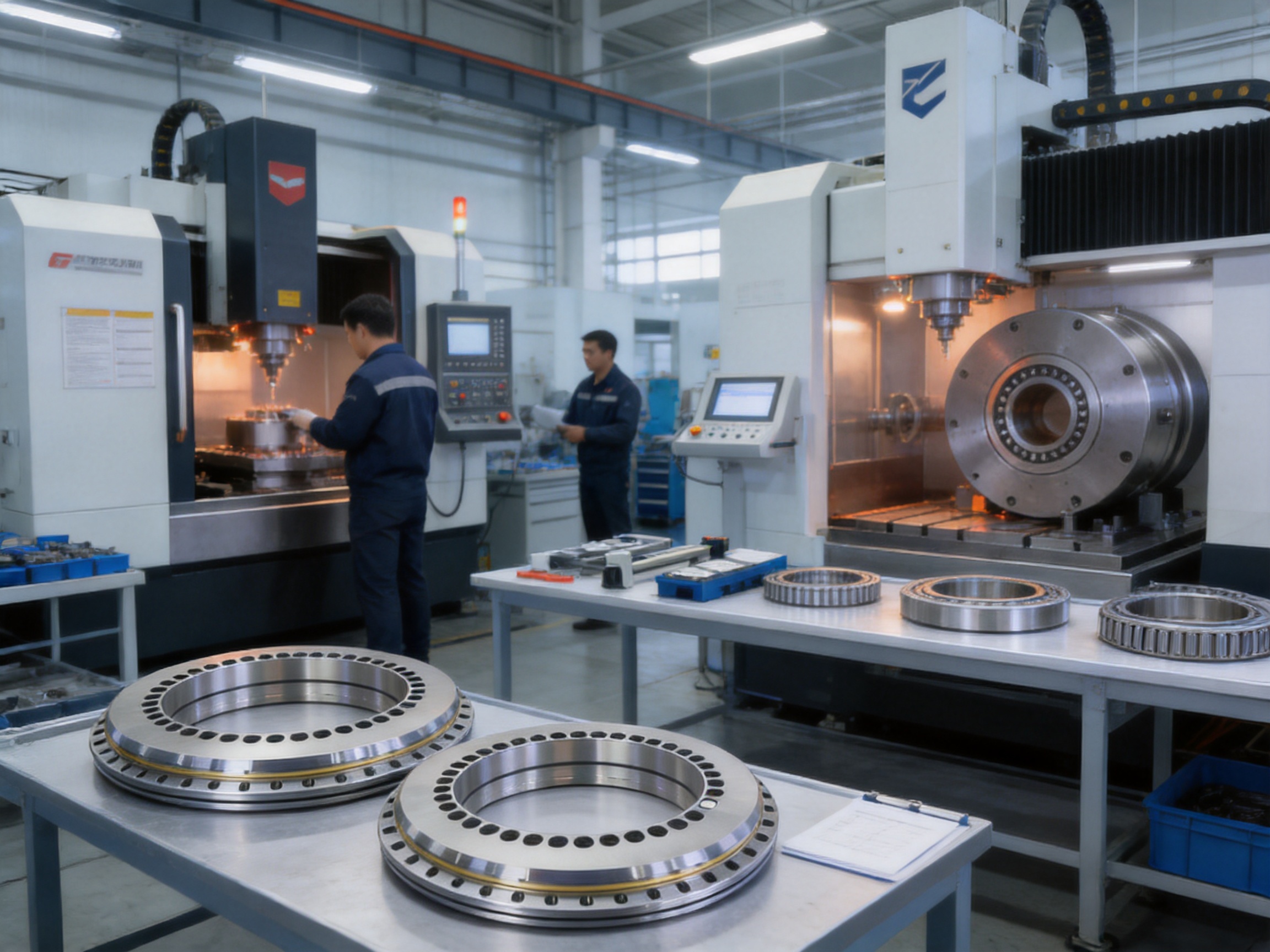

High-speed precision bearings cannot be produced reliably through basic machining alone. They require an integrated manufacturing system, precision equipment, skilled technicians, strict quality control, and a deep understanding of bearing application behavior. UKL Bearing Manufacturing Co., Ltd. supports this product through an industrial production system covering research and development, forging, turning, heat treatment, grinding, assembly, inspection, packaging, and international distribution.
The company operates as an integrated manufacturer and trader with a workforce of 201 to 500 employees and more than 15 years of OEM and ODM export experience. Its monthly production capacity ranges from 10,000 to 50,000 units, allowing it to serve both customized engineering orders and larger supply programs. Products are exported to regions including the United States, Italy, Germany, Poland, South Africa, Egypt, India, and other markets. This global experience is important because different industries and regions impose different expectations for quality documentation, packaging, delivery, communication, and technical service.
The company’s R&D team focuses on high-precision cross roller bearings, dual-direction thrust angular contact ball bearings, and other products used in CNC machines, robotics, and intelligent automation systems. For the YRTS high-speed precision bearing, research and development are essential because high-speed operation requires careful internal geometry, material stability, preload control, friction management, and lubrication compatibility.
R&D capability also enables customization. Some customers require special mounting holes, special tolerances, optimized preload, specific lubrication conditions, or documentation for OEM integration. A manufacturer with engineering support can work with customers to match the bearing to the machine rather than simply selling a catalog component. This is a significant advantage over suppliers that offer only standard inventory without technical adaptation.
Bearing performance begins with material quality. Forging improves the internal structure of the steel and prepares it for machining and heat treatment. Proper material preparation contributes to fatigue resistance, dimensional stability, and long-term durability. For high-precision bearings, material defects or inconsistent structure can later become sources of vibration, noise, or premature failure.
Advanced manufacturing control requires traceability of material batches and consistent process parameters. In precision rotary table bearings, the raceways must resist contact stress while maintaining geometry after heat treatment and grinding. Material quality is therefore not only a durability issue but also a precision issue.
Turning creates the basic ring geometry before heat treatment and grinding. Accurate turning reduces the amount of material that must be removed later and helps maintain uniform stress distribution. For complex rotary table bearings with fixing holes and mounting features, machining accuracy is especially important because hole position and ring geometry affect installation quality.
The YRTS series includes fixing holes distributed around the circumference. Correct hole spacing, pitch, and alignment are important for even clamping force during mounting. Uneven mounting can distort the bearing rings and reduce precision. Therefore, machining discipline and inspection of connecting screw holes are essential parts of reliable bearing production.
Heat treatment gives the bearing rings and rolling elements the hardness and fatigue resistance required for long service life. However, heat treatment also creates the risk of distortion if not properly controlled. A precision bearing manufacturer must manage heating, soaking, quenching, tempering, and stabilization carefully to achieve the correct combination of hardness, toughness, and dimensional stability.
For high-speed precision rotary table bearings, heat treatment consistency is especially important. Any uneven hardness or residual stress may influence grinding accuracy, preload stability, and long-term running precision. Proper heat treatment reduces wear and supports the bearing’s ability to maintain accuracy under load.
Grinding is one of the most critical processes in the production of P4 and P2 precision bearings. Raceway geometry, surface roughness, roundness, flatness, and parallelism all influence running accuracy. Superfinished raceways reduce friction, improve lubrication film behavior, and support low torque operation.
The YRTS high-speed precision bearing benefits from refined grinding because its performance depends on low and uniform friction torque. If raceways are not finished accurately, rolling elements may experience uneven contact, resulting in noise, heat, vibration, and unstable torque. Precision grinding also supports preload consistency, which is essential for high rigidity without excessive friction.
Assembly is where individual precision components become a complete bearing. Even if each part is manufactured accurately, incorrect assembly can reduce performance. Cleanliness, rolling element selection, raceway matching, spacer control, lubrication, and preload setting all influence final bearing behavior.
Because all bearings in the YRTS series are preloaded, assembly control is especially important. The goal is to achieve high rigidity while preserving low friction and high-speed capability. This requires experience and measurement. A reliable manufacturer tests the bearing after assembly to confirm rotational behavior, torque, accuracy, and other key characteristics.
Quality assurance for high-precision bearings must occur throughout production, not only at the final stage. Inspection may include dimensional checks, hardness testing, geometric measurement, surface inspection, noise and vibration evaluation, rotational accuracy testing, and packaging review. For export markets and OEM customers, consistent documentation and repeatable quality are essential.
The company’s production system supports international customers by combining manufacturing capacity with technical service. This is important for machine builders that need dependable supply, consistent batches, and rapid communication when engineering questions arise. A precision bearing is not merely a commodity; it is a critical machine element that must be matched to the application.
Even the best bearing can lose accuracy if installation is incorrect. The product information identifies improper installation as one of the common reasons for decreased precision. During installation, the bearing must be mounted according to the manufacturer’s instructions, using appropriate tools and correct tightening methods. The mounting surfaces must be clean, flat, and accurate. Any burrs, dust, chips, or uneven surfaces can create ring distortion and reduce running precision.
Fixing holes between shafts and bearing housings must be handled carefully, especially regarding pitch and equal spacing. The product note indicates that connecting screw holes and threaded removal holes are circumferentially distributed. Torque values are specified for 12.9-grade bolts. Using incorrect bolts, uneven tightening, or improper torque can reduce accuracy and cause deformation. Therefore, engineers should follow the correct tightening sequence and torque values during assembly.
Mounting accuracy is particularly important for preloaded bearings. Unlike clearance bearings that may tolerate some installation error, preloaded precision bearings can be sensitive to housing and shaft geometry. If the shaft or housing is not accurate, preload may become uneven, causing excessive torque, heat, or reduced life. Proper installation tools should be used to ensure the bearing is seated correctly without impact damage.
Lubrication plays a major role in bearing accuracy, speed capability, and life. Insufficient lubrication increases friction, heat, wear, and torque instability. The product information identifies insufficient lubrication as a common cause of decreased bearing precision. A suitable lubricant should be selected according to operating speed, load, temperature, environment, and maintenance interval.
For high-speed applications, lubricant selection must balance film strength and friction. A lubricant that is too thick may increase torque and heat, while a lubricant that is too light may fail to protect contact surfaces under load. Regular lubrication is necessary to ensure that the bearing has sufficient lubricant throughout its operating life. Maintenance teams should follow recommended lubrication intervals and avoid mixing incompatible greases.
Clean lubrication is also important. Contaminated grease can carry particles into the raceway contact zone, causing wear and reducing precision. In dusty or contaminated environments, sealing and protective devices should be used to reduce the risk of foreign material entering the bearing.
During long-term operation, rolling elements and raceways continuously contact each other. Although proper lubrication and material treatment reduce wear, no bearing is completely immune to mechanical wear. As surfaces wear, bearing precision may gradually decrease. Signs may include increased vibration, abnormal sound, increased torque, reduced positioning accuracy, or poor machining results.
The practical solution is regular inspection. Maintenance teams should monitor bearing condition, check for wear indicators, and respond early to changes in operating behavior. Severely worn parts should be replaced promptly to preserve machine accuracy and avoid secondary damage to the surrounding system.
Insufficient lubrication can lead to increased friction and decreased accuracy. Possible causes include too little lubricant, wrong lubricant selection, extended maintenance intervals, leakage, or contamination. In high-speed rotary table bearings, lubrication problems can quickly become heat problems, and heat can become precision problems.
The solution is to select a suitable lubricant and lubricate regularly. The lubricant should match the bearing’s operating conditions. Maintenance records should be kept so that lubrication intervals are not missed. If the machine operates at high speed or in harsh conditions, lubrication practices may need to be adjusted accordingly.
If the bearing installation position is incorrect or mounting force is uneven, the bearing may experience uneven stress during operation. This can reduce accuracy, increase friction, and shorten life. Improper installation may include misalignment, poor mounting surface quality, incorrect tightening torque, wrong bolt grade, or impact during assembly.
The solution is to follow the installation manual strictly. Correct tools should be used, and mounting surfaces should be inspected before assembly. The tightening process should be controlled and documented. In precision equipment, installation is part of the accuracy chain and must be treated with the same seriousness as bearing manufacturing.
Dust, impurities, coolant mist, abrasive particles, or chemicals can adhere to the bearing surface or enter the bearing, affecting accuracy and life. In machine tools, grinding dust and chips are especially dangerous. In automation environments, airborne particles or chemical vapors may also influence lubrication and corrosion resistance.
The solution is to maintain a clean environment and use protective devices when necessary. Sealing covers, shields, clean assembly procedures, and regular cleaning around the bearing can reduce contamination risk. In high-precision equipment, environmental control is not optional; it is part of maintaining long-term accuracy.
When selecting a YRTS high-speed precision bearing, engineers should consider load, speed, accuracy grade, rigidity, installation space, lubrication, environment, and expected service life. The bearing should not be selected only by inner and outer diameter. A complete selection process compares axial load, radial load, overturning moment, duty cycle, temperature, mounting structure, and control system requirements.
Speed is especially important. The table lists grease lubrication limited speeds for several models, from 950 r/min for YRTS200 to 500 r/min for YRTS460. Actual allowable speed may depend on load, lubrication, heat dissipation, preload, and operating cycle. A machine running continuously at high speed may require more conservative selection than a machine that operates intermittently.
Rigidity should be considered in relation to the entire machine structure. A high-rigidity bearing cannot fully compensate for a weak housing, flexible shaft, or inaccurate mounting surface. To realize the full performance of the bearing, the surrounding structure must be designed with adequate stiffness and precision. The bearing, shaft, housing, bolts, motor, encoder, and table must work together as one system.
For direct-drive systems, engineers should also consider motor heat. Direct-drive motors may transfer heat to the bearing area. Thermal expansion can influence preload and accuracy. Proper thermal management, material selection, and structural design help maintain stable bearing performance. The low friction torque of the YRTS high-speed precision bearing helps reduce bearing-generated heat, but system-level heat control is still necessary.
Machine builders and equipment manufacturers often require more than standard product supply. They need engineering discussion, consistent production, documentation, packaging, and after-sales support. UKL Bearing Manufacturing Co., Ltd. has more than 15 years of OEM and ODM export experience, which supports customers developing customized equipment for international markets.
OEM and ODM support can include technical selection assistance, custom bearing features, packaging requirements, batch production, inspection reports, and communication with engineering teams. For manufacturers of CNC machines, robotic systems, automation modules, and precision devices, this service capability reduces project risk. Instead of adapting the machine to a generic bearing, customers can work with a manufacturer that understands the demands of precision rotary motion.
The company’s multilingual service team provides technical response, installation guidance, and after-sales maintenance support worldwide. This is important because bearing performance depends not only on the product but also on correct selection, mounting, lubrication, and maintenance. A supplier that can support these stages provides greater long-term value than a supplier focused only on shipment.
Precision manufacturing must also consider long-term environmental responsibility. The company adopts environmentally responsible processes, promotes material recycling, and optimizes energy usage to reduce its environmental footprint. In bearing manufacturing, sustainability can include efficient material utilization, controlled heat treatment energy use, responsible waste management, recycling of metal materials, and process optimization to reduce rework.
Durable bearings also support sustainability indirectly. A bearing that maintains precision longer reduces replacement frequency, machine downtime, scrap parts, and maintenance waste. In high-value machine tools and automation systems, reliable bearings contribute to more efficient production and better resource utilization.
The YRTS high-speed precision bearing supports precision operation through a combination of mechanical design and manufacturing discipline. Its preload provides rigidity. Its high precision reduces runout. Its combined load capacity stabilizes the rotary axis. Its high-speed design supports direct-drive motion. Its low and uniform friction torque improves control behavior. These advantages work together rather than separately.
For a machine builder, this means a simpler and more stable rotary axis. For an end user, it means better machining quality, more reliable operation, and reduced maintenance risk. For automation integrators, it means smoother motion and stronger mechanical confidence. For maintenance teams, it means a bearing designed for demanding applications, provided that installation and lubrication are handled correctly.
The bearing is designed for high-precision rotary table applications that require high speed, high rigidity, and support for axial, radial, and overturning loads. It is especially suitable for direct-drive motor systems, precision rotary tables, indexing heads, vertical grinders, gear hobbing machines, and gear milling machine workpiece shafts.
The external dimensions are the same as the standard YRT series, but the internal structure is different. The YRTS series offers higher speed capability and low, uniform friction torque across the speed range, making it better suited for direct-drive applications.
The bearing can reach P4 and P2 precision grades. These grades are suitable for demanding applications where rotational accuracy, positioning repeatability, and low runout are important.
Preload removes internal clearance and increases rigidity. This helps the bearing resist deflection under axial, radial, and overturning loads. In direct-drive systems, preload also supports stable servo response and accurate positioning.
The bearing can withstand axial loads, radial loads, and overturning loads. This integrated load capacity allows it to replace more complex bearing arrangements in many rotary table designs.
Low and uniform friction torque reduces heat generation and improves motion control stability. In direct-drive motor applications, predictable torque behavior helps the servo system achieve smoother and more accurate rotation.
Common reasons include mechanical wear, insufficient lubrication, improper installation, and environmental contamination. Regular inspection, correct lubrication, careful mounting, and clean operating conditions help preserve precision.
Yes. The YRTS series is specifically designed for higher-speed operation compared with the standard YRT series. However, actual operating speed should be evaluated based on load, lubrication, temperature, mounting structure, and duty cycle.
Mounting surfaces must be clean and accurate, correct tools should be used, and bolts should be tightened according to specified torque values and sequences. Improper installation can distort the bearing and reduce accuracy.
The product is supported by integrated manufacturing processes including forging, turning, heat treatment, grinding, assembly, inspection, and packaging. The manufacturer also provides R&D capability, OEM and ODM export experience, international service, and production capacity suitable for both customized and batch orders.
The YRTS high-speed precision bearing is a strong solution for advanced rotary motion systems that require speed, rigidity, accuracy, and combined load capacity. Its optimized internal structure, same external dimensions as the standard YRT series, low and uniform friction torque, and suitability for direct-drive motors give it clear advantages over many conventional rotary bearing solutions. It helps machine builders create compact, accurate, and reliable rotary axes for precision grinding, indexing, gear machining, robotics, automation, and inspection equipment.
Behind the product is a comprehensive manufacturing system supported by R&D, precision machining, heat treatment, grinding, controlled assembly, and quality assurance. UKL Bearing Manufacturing Co., Ltd. combines production capacity with OEM and ODM experience, global export service, and technical support. For customers seeking high-performance bearing solutions, this combination of product design and manufacturing strength provides practical value beyond the bearing itself.
As precision manufacturing continues to move toward higher speed, greater automation, and stricter quality standards, the importance of reliable rotary table bearings will only increase. A bearing such as the YRTS high-speed precision series provides the mechanical foundation for accurate, stable, and efficient rotary motion. With correct selection, installation, lubrication, and maintenance, it can help precision equipment achieve long-term performance and dependable operation.
1. Harris, T. A., and Kotzalas, M. N. Rolling Bearing Analysis: Essential Concepts of Bearing Technology. CRC Press.
2. Brändlein, J., Eschmann, P., Hasbargen, L., and Weigand, K. Ball and Roller Bearings: Theory, Design and Application. Wiley.
3. ISO 492. Rolling Bearings: Radial Bearings, Geometrical Product Specifications and Tolerance Values.
4. ISO 76. Rolling Bearings: Static Load Ratings.
5. ISO 281. Rolling Bearings: Dynamic Load Ratings and Rating Life.
6. Machine Tool Design Handbook: Principles of Precision Rotary Axes and Bearing Selection.
7. Precision Bearing Application Guide for Rotary Tables, Direct-Drive Motors, and CNC Machine Tools.
